Air pressure : 0.4-0.6Mpa
Filling Material : Liquid or Paste
Total power : 1.5Kw
Dimensions : 2315×635×1405mm
Brand Name : LTPM CHINA
Model Number : DPP-Series
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : Negotiation
Payment Terms : 30% TT as deposit and 70% before shipping
Supply Ability : 25 sets
Delivery Time : In 35 days after receiving the deposit
Packaging Details : Wooden Case
Weight : 820KG
Punching frequency : 10-40 times/min
Production capacity : 2100editions/hour
Voltage : 380V/220V 50Hz 2.8kw
1. Flat structure, can pack special shape items, such as oval, square, triangle, liquid, paste, syringe, etc.
2. The main transmission part adopts parallel shaft helical gear reducer, with novel structure, stable operation, long life and low noise.
3. Heat sealing is fixed, forming, indentation, punching and other parts can be moved freely to adjust the distance, and the correction is convenient and simple.
4. Manipulator traction, adjustable stroke, can be adapted to the packaging of different sizes.

| Model | DPP-140 |
| Punch Frequency | 10-35 times/min |
| Production Capacity | 1200-4200 bisters/hour |
| Nosie | <75dBA |
| Standard Stroke Range | 50-120mm( can be designed as per user’s required) |
| Standard plate size | 80x57mm ( can be designed as per user’s required) |
| Max forming area | 80X105X25(mm) |
| Air pressure | 0.4-0.6Mpa |
| Total power | 380V 50HZ 3.8kw |
| Main electrical power | 1.5kw |
| PVC hard film | (0.15-0.5)×150mm |
| PTP Aluminum film | (0.02-0.035)×150mm |
| Dialysis paper | (0.02-0.035)×150mm |
| Cooling of mold | Tap water or recycled water |
| Overall dimension | 2315×635×1405mm(L×W×H) |
| Weight | 820kg |
| Max. Forming area & Depth | 150x110(standard depth <=15mm) |
| Max. Depth 26mm |
Company Profile
|
|

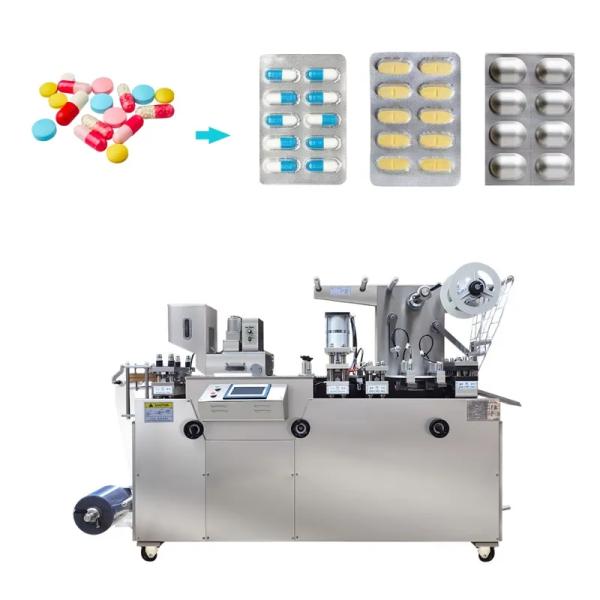

Health production Capsule Tablet Blister Packing Machine High Efficiency Automatic 220V Images |
